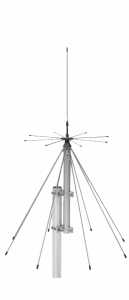

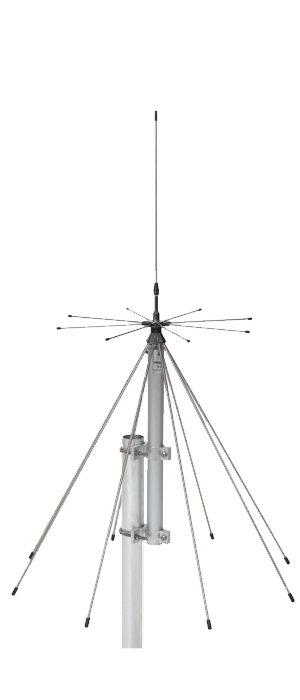

SD 2000 N Extremely Wide-Band Suitable For Scanner Use
Article:
2109105.00
Shipping methods
- Pickup from New Mail
- New Mail Courier
- Pickup from the store
- Other transport services
Payment methods
- Cash upon receipt
- Bank transfer
- Privat 24
- WebMoney
| 2109105.00 | SD 2000 N |
Electrical Data: |
|
|---|---|
| Type: | Discone |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | Banda RX: 100-2000 MHz Banda TX (@ SWR ≤2): 130-160, 221-445, 610-682, 860-960, 1075-1500, 1610-2000 MHz |
| Systems: | 2m-HAM, VHF Airband, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, TETRA-350, TETRA, GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, ISM/SIGFOX/LoRa 915MHz |
| Gain: | 0 dBd – 2.15 dBi @ lowest frequency |
| Max Power: | 200 Watts (CW) continuous |

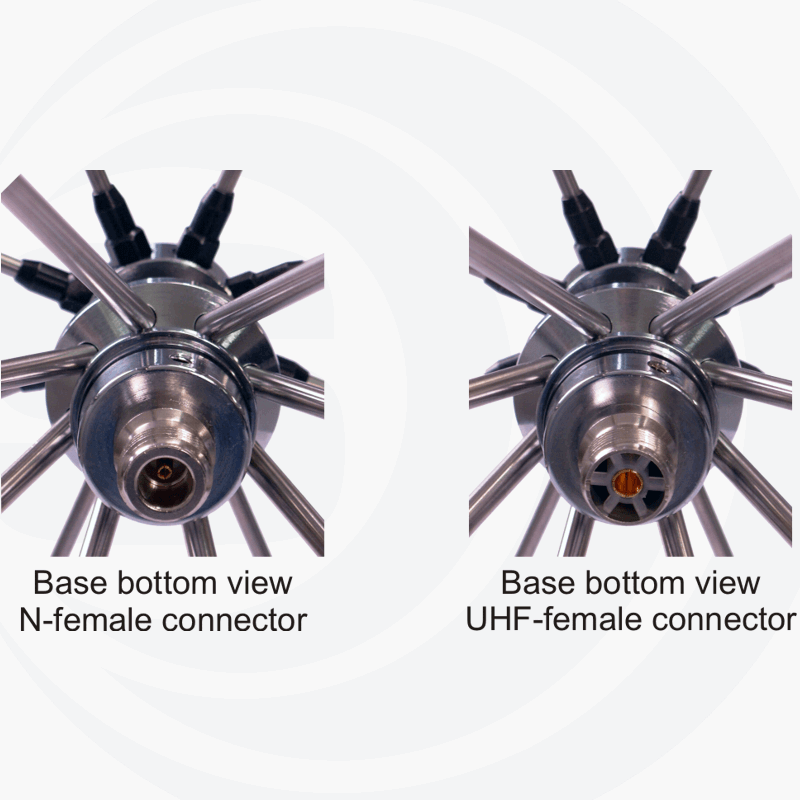

| Connector: |
SD 2000 U:
UHF-female (SO-239)
SD 2000 N:
N-female
|
Mechanical Data: |
|
|---|---|
| Materials: | Chromed brass, Stainless steel, Nylon |
| Height (approx): | 940 mm / 3.08 ft |
| Weight (approx): | 1020 gr / 2.25 lb |
| Mounting type: | On-Mast |
-
Тип антени:Зовнішня
-
Імпеданс:50 Ом
-
Монтаж:На мачту
-
Тип роз'єму:N-type
-
Частотний діапазон:100-2000 MHz
